Poste Exterior de Guía

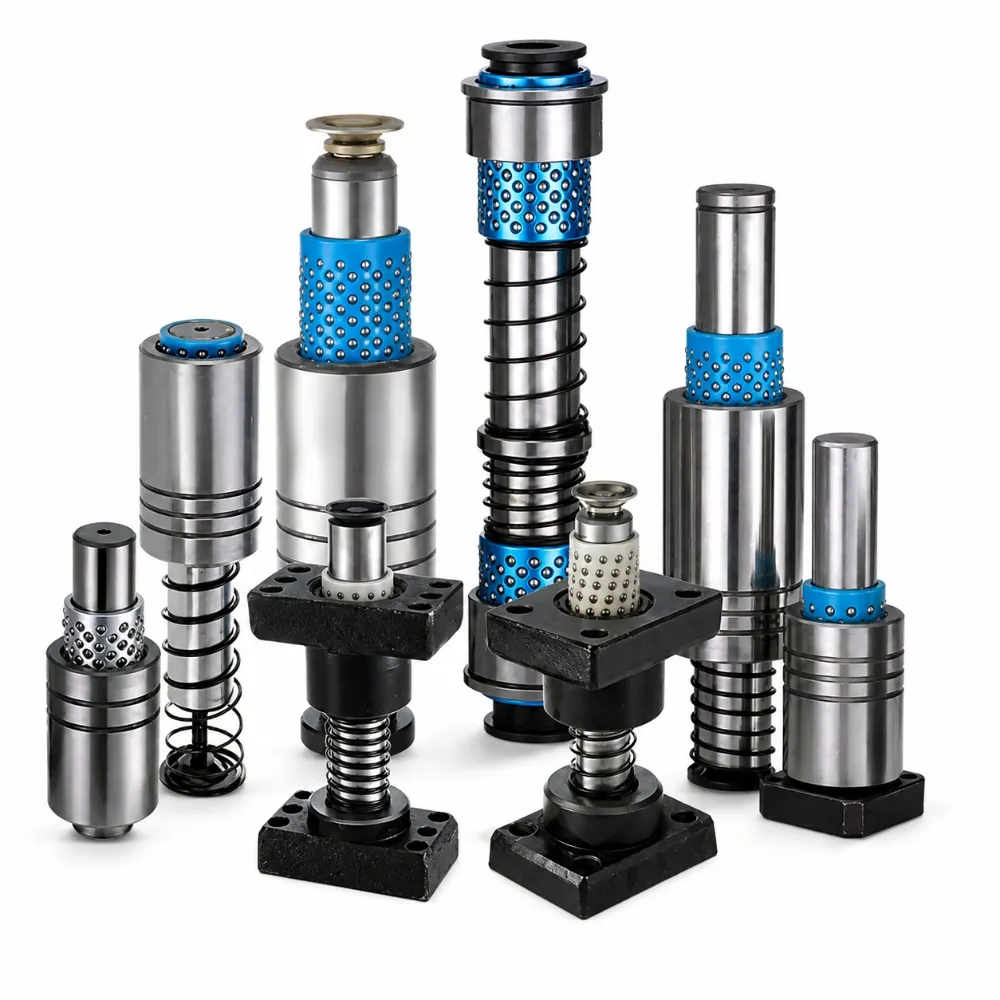

Outer Guide Post provides dependable external guidance for die sets, molds, and stamping equipment requiring precise linear movement. Engineered with durable steel construction and advanced manufacturing processes, it delivers smooth operation and consistent positioning throughout repeated production cycles. The external mounting design enhances accessibility and system stability while supporting accurate component alignment.
- Supports Accurate External Guidance Systems: Delivers dependable alignment for demanding tooling.
- Resists Deformation During Heavy Operation: Maintains structural integrity under continuous loads.
- Facilitates Faster Equipment Maintenance Tasks: Simplifies inspection and component replacement procedures.
- Compatible With Multiple Die Configurations: Adapts easily to diverse tooling applications.
Descripción del producto
Introducción
Outer Guide Post is an important guiding component designed for stamping dies, Bases de molde, Los Sets, and various precision tooling systems. Positioned outside the die assembly, it helps maintain accurate alignment between moving sections during operation. Reliable guidance is essential for ensuring dimensional accuracy, reducing production errors, and improving the overall quality of stamped or formed products. Its stable structure makes it suitable for both standard and high-precision manufacturing environments.
Manufactured from premium-grade bearing steel and processed through precision machining, Tratamiento térmico, and grinding operations, the Outer Guide Post offers excellent hardness, Resistencia al desgaste, y resistencia mecánica. The smooth surface finish helps reduce friction during continuous movement, while the hardened construction enhances durability under demanding working conditions. These characteristics contribute to improved operational stability and longer service life for die and mold systems.
Outer Guide Posts are widely used in automotive manufacturing, Producción electrónica, household appliance fabrication, aerospace tooling, Maquinaria industrial, and metal forming applications. Disponible en múltiples diámetros, Longitudes, y configuraciones de montaje, they can accommodate a wide range of tooling requirements. Materiales personalizados, Dimensiones, and surface treatments are also available to support specialized projects, providing manufacturers with dependable guiding solutions for precision production processes.
Especificaciones
| Parámetro | Especificaciones |
|---|---|
| Nombre del producto | Poste Exterior de Guía |
| Material | Acero para cojines SUJ2 / GCr15 |
| Acabado superficial | Terreno de Precisión |
| Dureza | HRC 58-62 |
| Tipo guía | Sistema de Guiado Externo |
| Rango de diámetro | Ø20 mm – Ø80 mm |
| Rango de longitud | 100 mm – 600 mm |
| Tratamiento de superficies | Cromado duro opcional |
| Rectitud | ≤0.005 mm/100 mm |
| Concentricidad | Alta Precisión |
| Tipo de instalación | Montaje por presión / Montado en perno |
| Entorno operativo | Sistemas de Herramientas Industriales |
| Vida útil | Funcionamiento continuo a largo plazo |
| Personalización | OEM & ODM disponible |
Tres aspectos clave de personalización, Adaptado a tus necesidades
Adaptar diferentes métodos de personalización para cumplir con distintos requisitos.
Fabricación de Precisión, Calidad excelente
Estabilidad Estructural Mejorada
The external guiding design strengthens overall die assembly support, helping maintain consistent positioning accuracy while reducing unwanted movement during demanding manufacturing operations.
Excelente protección contra la corrosión
Optional surface treatments provide additional protection against moisture, contaminants, and harsh workshop environments, helping preserve component performance over extended periods.
Integración eficiente de ensambladores
Designed for convenient installation and compatibility with various die set configurations, allowing manufacturers to simplify setup procedures and reduce adjustment time.
Retención dimensional fiable
High-quality materials and controlled heat-treatment processes help maintain critical dimensions under repeated mechanical stress, supporting long-term accuracy in production applications.
Servicio refinado, Tiempo de entrega reducido
Desde la revisión de diseño hasta la entrega, Ofrecemos un seguimiento dedicado uno a uno durante todo el proceso.
Consulta → Proporcionar planos → revisión de diseño & Presupuestos → procesamiento de pedidos → inspección de calidad → entrega puntual → seguimiento postventa
Nuestras ventajas
Respaldado por más de 25 años de experiencia en ingeniería, Nuestro equipo ofrece servicios integrales —desde el diseño personalizado de moldes y mecanizado de precisión hasta la producción a gran escala— apoyados por un sólido sistema de aseguramiento de la calidad y un servicio al cliente proactivo. Certificado bajo ISO9001, ISO14001, y IATF 16949, Buscamos continuamente la excelencia en calidad, Innovación, y satisfacción del cliente.
Más de 100,000 Unidades en stock, con envío en 2 horas para productos estándar.
Implementación de un sistema de inspección en tres etapas—comprobación inicial del material, Inspección en proceso, e inspección final.
Gran inventario y plazos rápidos, garantizar la entrega puntual con inspección del producto al 100%.
Rango de aplicación
La opción preferida en diversas industrias.
