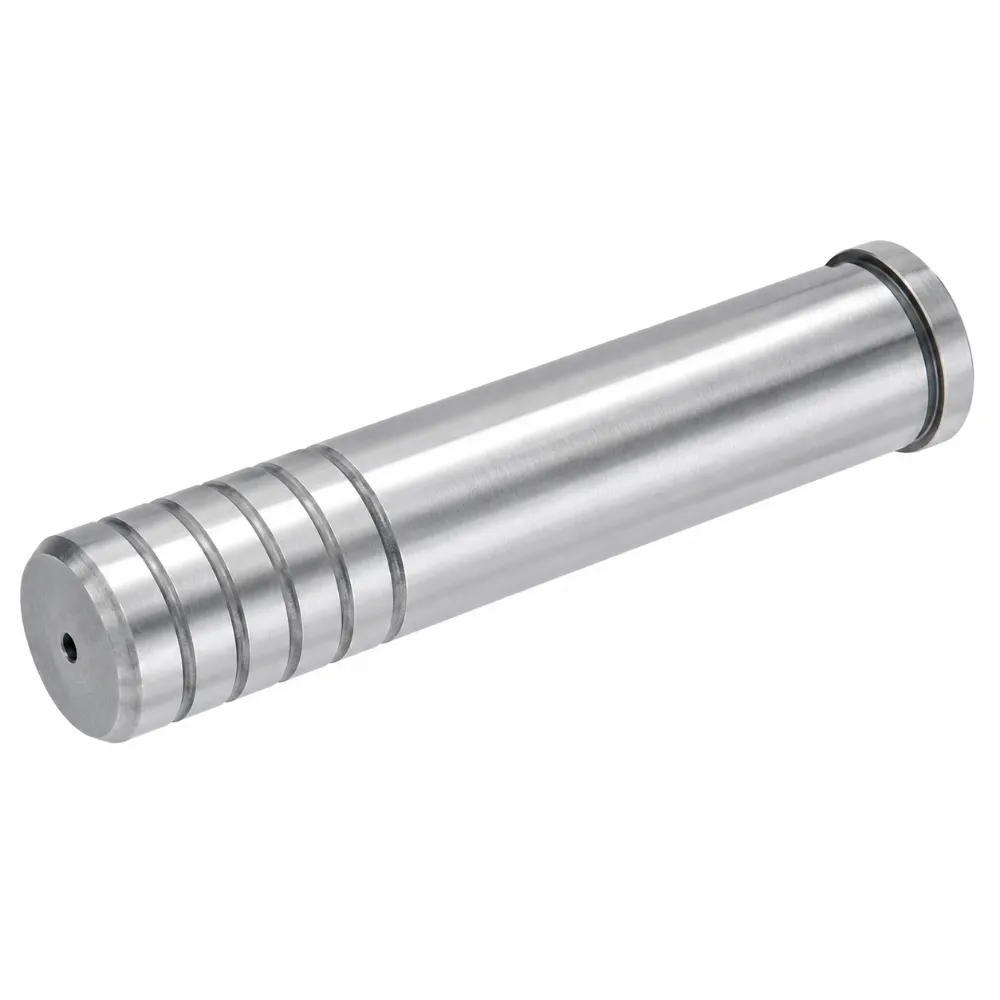

Pasador guía para stripper
Stripper Guide Pin is developed for precision guiding applications in stamping tools and die assemblies. Its durable construction enables accurate positioning of stripper plate components while supporting smooth and controlled movement during production. Manufactured with strict quality standards, the guide pin delivers reliable mechanical performance and excellent resistance to long-term operational stress.
- Enhances Precision During Plate Movement: Supports controlled motion throughout stamping cycles.
- Maintains Accuracy Under Repeated Impact: Delivers dependable performance during continuous operation.
- Optimizado para aplicaciones de dados progresivos: Suitable for demanding precision tooling systems.
- Supports Efficient High Volume Production: Helps improve productivity and process consistency.
Descripción del producto
Introducción
Stripper Guide Pin is an essential component used in stamping dies, Matrices progresivas, and precision tooling systems where accurate stripper plate movement is required. It helps guide and support the stripper plate throughout the stamping cycle, ensuring smooth operation and maintaining proper alignment between critical die components. Reliable guidance contributes to improved product consistency, reduced operational errors, and enhanced production efficiency in demanding manufacturing environments.
Manufactured from premium bearing steel and processed through precision machining, Tratamiento térmico, and grinding technologies, the Stripper Guide Pin offers outstanding dimensional accuracy and long-lasting durability. The hardened surface helps resist wear caused by repeated movement, while the precision-ground finish promotes smooth operation and minimizes friction. These characteristics allow the component to perform reliably during continuous production while helping protect surrounding tooling parts from excessive wear.
Stripper Guide Pins are widely applied in automotive component manufacturing, electronic stamping, Producción de electrodomésticos, hardware processing, and industrial metal forming operations. Disponible en varios diámetros, Longitudes, y grados de tolerancia, they can be integrated into a wide range of die designs and tooling systems. Custom manufacturing options are also available to meet specific project requirements, providing dependable guiding solutions for precision stamping applications across multiple industries.
Especificaciones
| Parámetro | Especificaciones |
|---|---|
| Nombre del producto | Pasador guía para stripper |
| Material | SUJ2 / GCr15 |
| Dureza | HRC 58-62 |
| Acabado superficial | Terreno de Precisión |
| Rango de diámetro | Ø6-Ø25 mm |
| Rango de longitud | 20-250 mm |
| Rectitud | ≤0.003 mm/100 mm |
| Tratamiento de superficies | Cromo Duro opcional |
| Método de instalación | Ajuste de presión |
| Pendiente de precisión | Alta Precisión |
| Servicio personalizado | OEM & ODM |
Tres aspectos clave de personalización, Adaptado a tus necesidades
Adaptar diferentes métodos de personalización para cumplir con distintos requisitos.
Fabricación de Precisión, Calidad excelente
Control mejorado de la placa de decapante
Provides accurate support for stripper plate movement, helping maintain consistent motion throughout stamping operations while contributing to improved process stability and product quality.
Integración de Diseño Compacto
Engineered for efficient installation within limited tooling spaces, allowing seamless integration into complex die assemblies without compromising operational performance or reliability.
Rendimiento repetitivo constante
Designed to perform reliably during continuous production cycles, helping maintain guiding accuracy and operational consistency even under frequent repetitive stamping conditions.
Reducción del desgaste de interacción de componentes
Helps minimize direct contact between critical tooling parts, lowering wear rates and supporting smoother operation throughout long-term manufacturing applications.
Servicio refinado, Tiempo de entrega reducido
Desde la revisión de diseño hasta la entrega, Ofrecemos un seguimiento dedicado uno a uno durante todo el proceso.
Consulta → Proporcionar planos → revisión de diseño & Presupuestos → procesamiento de pedidos → inspección de calidad → entrega puntual → seguimiento postventa
Nuestras ventajas
Respaldado por más de 25 años de experiencia en ingeniería, Nuestro equipo ofrece servicios integrales —desde el diseño personalizado de moldes y mecanizado de precisión hasta la producción a gran escala— apoyados por un sólido sistema de aseguramiento de la calidad y un servicio al cliente proactivo. Certificado bajo ISO9001, ISO14001, y IATF 16949, Buscamos continuamente la excelencia en calidad, Innovación, y satisfacción del cliente.
Más de 100,000 Unidades en stock, con envío en 2 horas para productos estándar.
Implementación de un sistema de inspección en tres etapas—comprobación inicial del material, Inspección en proceso, e inspección final.
Gran inventario y plazos rápidos, garantizar la entrega puntual con inspección del producto al 100%.
Rango de aplicación
La opción preferida en diversas industrias.
Preguntas frecuentes
What is a Stripper Guide Pin?
A Stripper Guide Pin is a precision guiding component used in stamping dies to control the movement of the stripper plate. It helps maintain accurate alignment and smooth operation during the stamping process.
What materials are used for Stripper Guide Pins?
Stripper Guide Pins are commonly manufactured from high-quality bearing steel such as SUJ2 or GCr15. Estos materiales proporcionan una dureza excelente, Resistencia al desgaste, y larga vida útil.
Where are Stripper Guide Pins typically used?
Se utilizan ampliamente en troqueles progresivos, Matrices de estampación de precisión, Herramientas automotrices, Fabricación de componentes electrónicos, Equipos de conformado metálico, and industrial punching applications.
Can Stripper Guide Pins be customized?
Sí. Diámetros personalizados, Longitudes, Tolerancias, Tratamientos superficiales, and material specifications can be produced according to customer drawings or specific tooling requirements.
How do Stripper Guide Pins improve die performance?
By providing stable and accurate guidance for the stripper plate, they help reduce misalignment, minimize component wear, mejorar la consistencia en la producción, and extend tooling service life.
